Precision MeshSolutions
Woven and knitted metal mesh engineered around your application — not pulled from a catalogue. Fourteen catalogued alloys, controlled apertures and finishing in one plant.

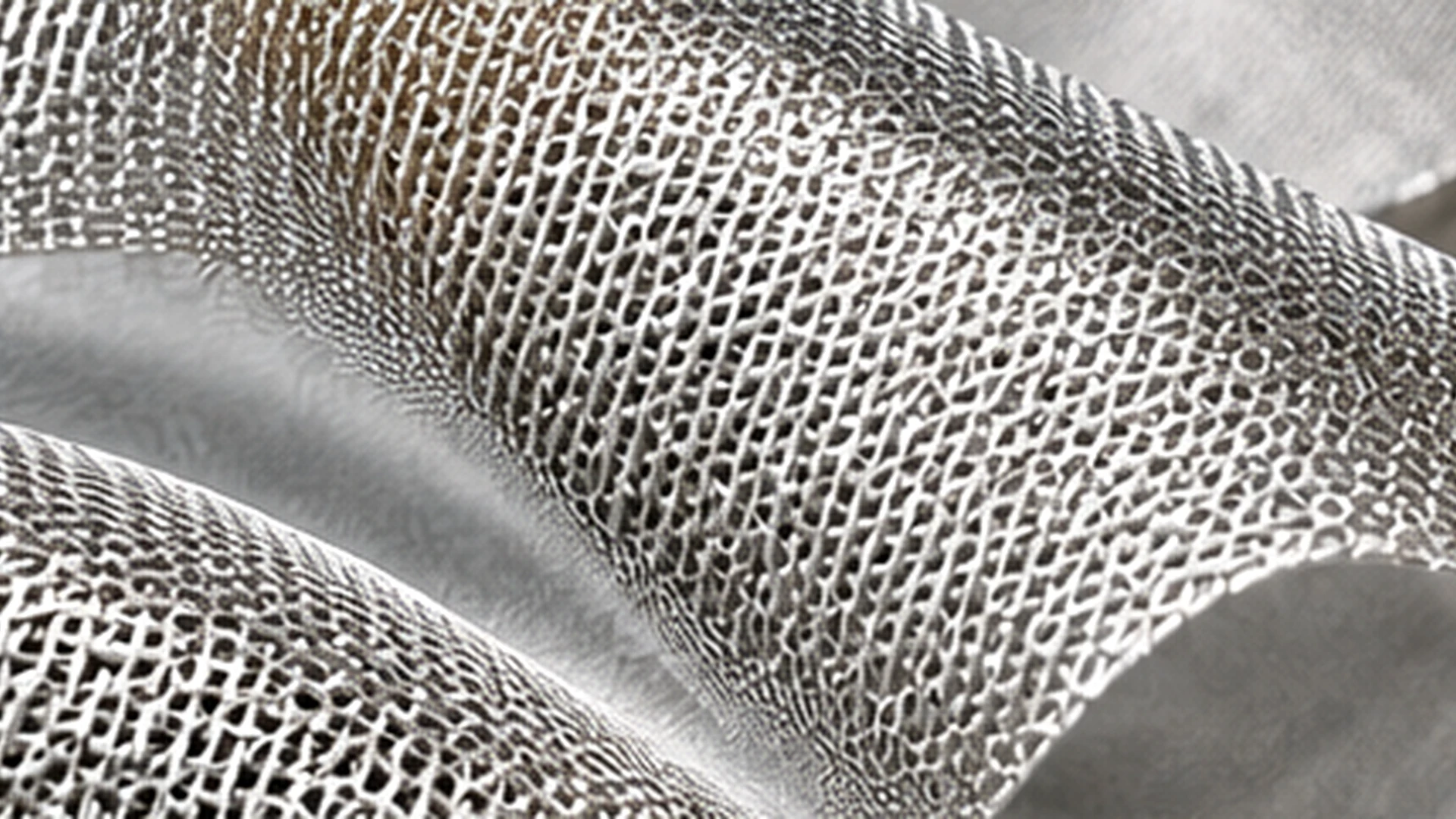

Woven Mesh
Knitted Mesh
Formed Parts
Alloy Range
Controlled Apertures
Repeatable opening size across the roll.
14 Catalogued Alloys
Stainless, nickel, copper and aluminium families.
Integrated Finishing
Treatment, forming and cutting in-house.
100% Traceability
Batch records from material to dispatch.
Overview
Two mesh families,
one engineering decision

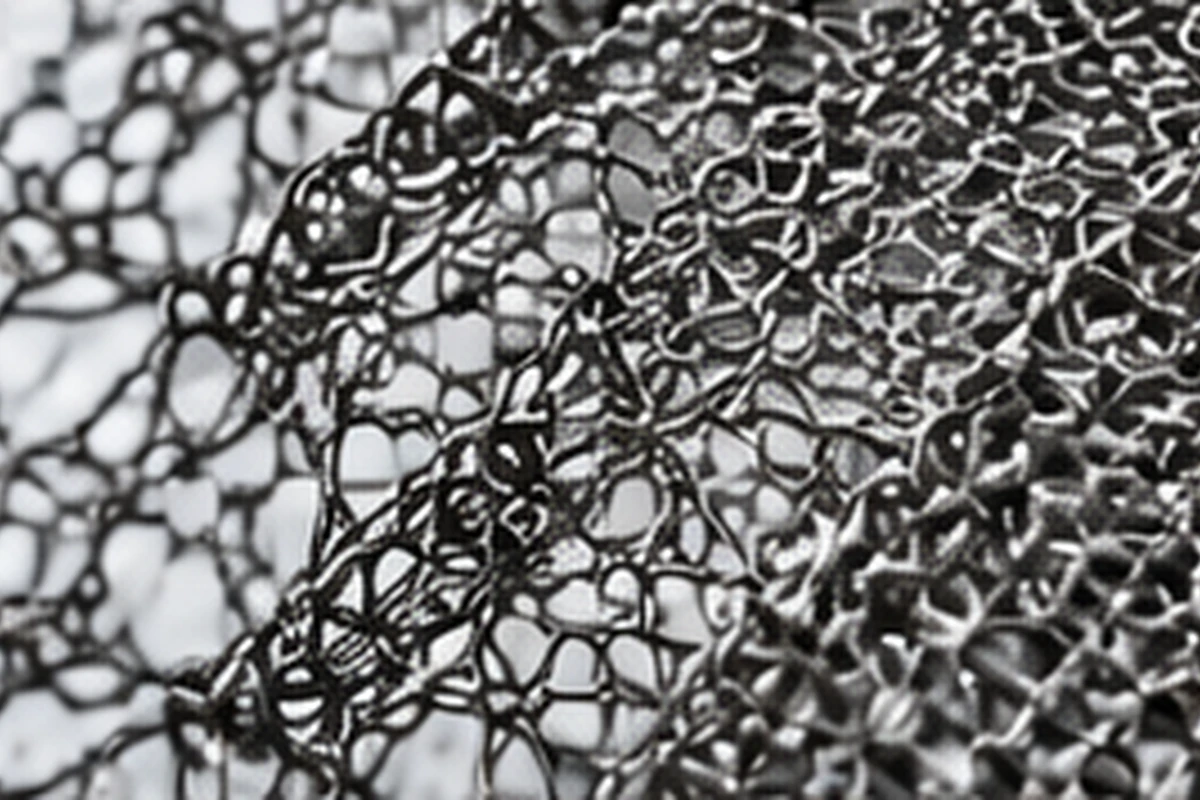

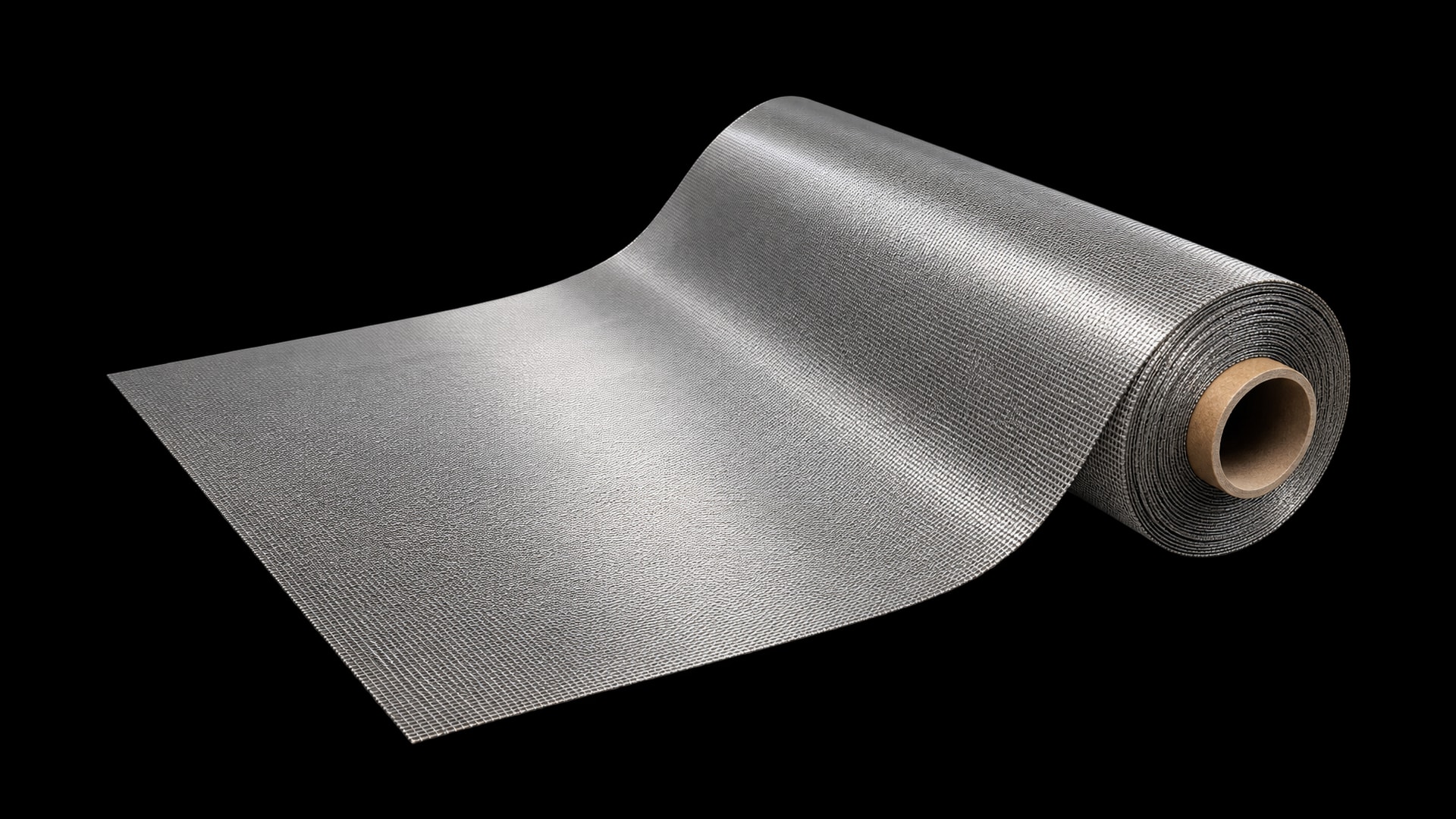

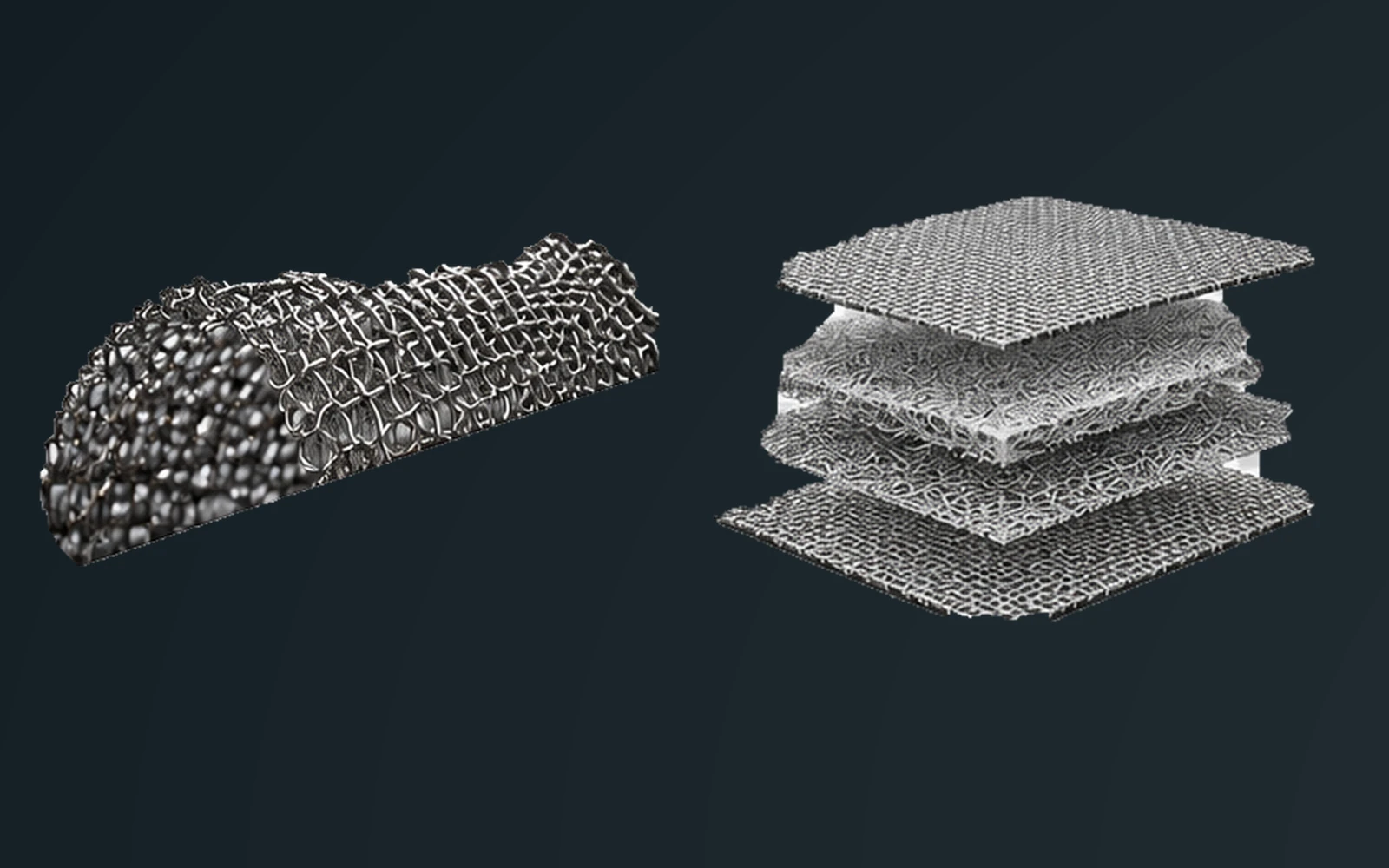

Woven mesh and knitted mesh solve different problems. Woven mesh gives you a stable, repeatable opening — the right answer when retention and flow have to be predictable. Knitted mesh gives you porosity and the ability to deform into a shape — the right answer when the part has to fit a stack or absorb load. The first thing BVK does on any enquiry is work out which of the two your component actually needs.

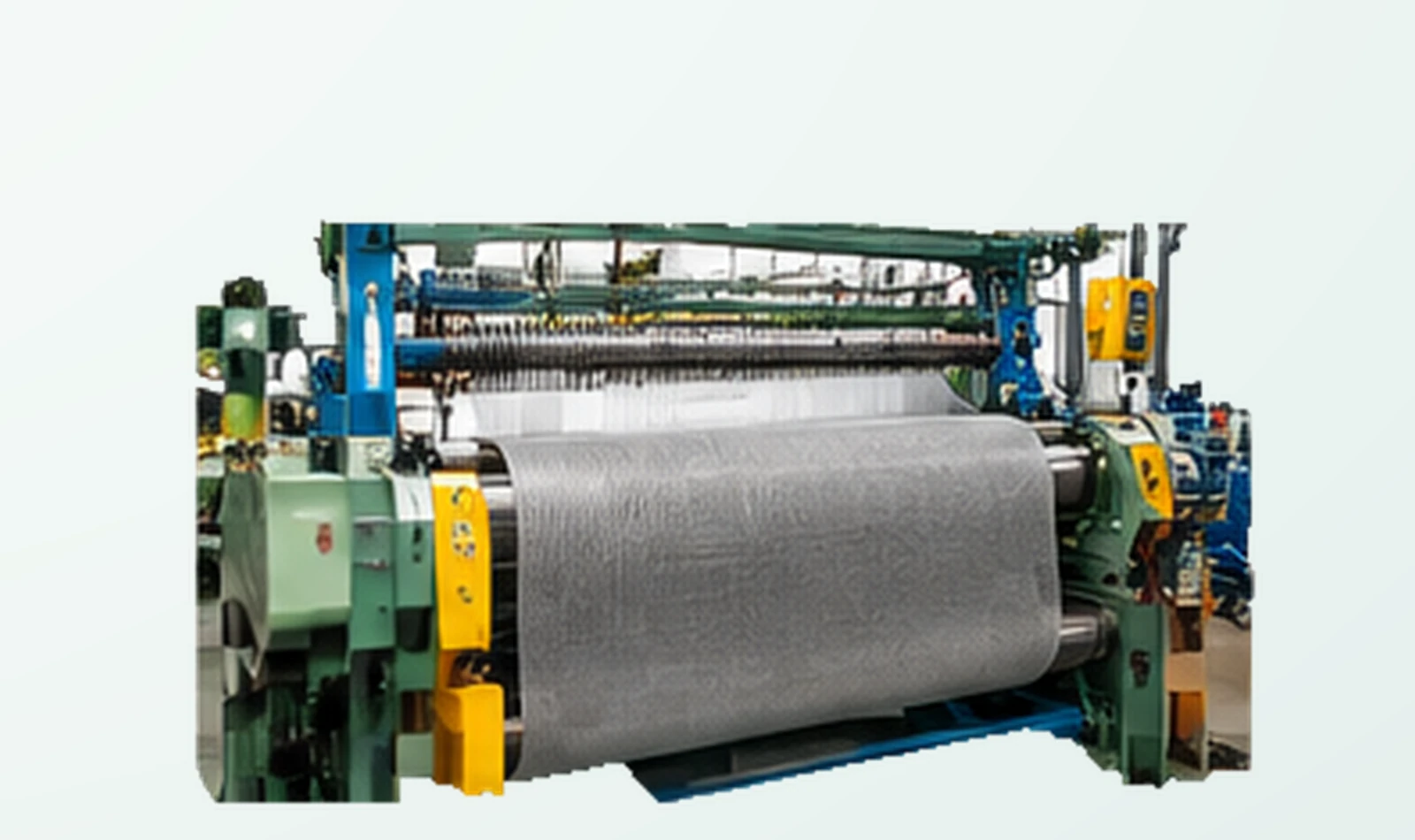

Since 1963
integrated weaving plant in Jaipur
Capability
What a precision mesh
component involves
Six decisions stand between an enquiry and a part that works. BVK makes all six in-house, which is why they stay consistent from the first sample to the hundredth batch.
Material Selection
Alloy chosen against corrosion, temperature, conductivity and cost.
Inspection
Light-box and video inspection against a documented control plan.
Forming
Crimping, corrugation, flattening, slitting and laser cutting to final shape.
Treatment

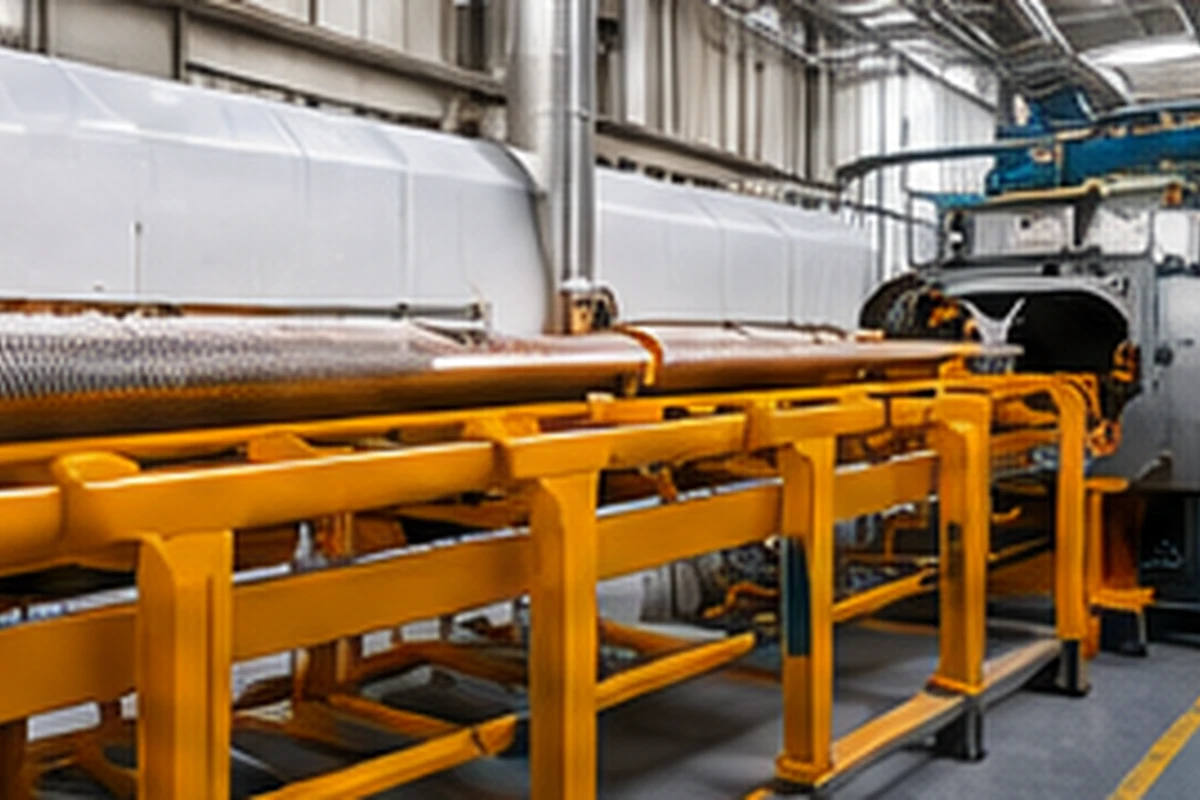

Annealing, degreasing, coating or plating to change how the mesh behaves.
Mesh Geometry
Aperture, wire diameter, knit density and weave pattern set the performance.
Documentation
Traceability records, control plans and PPA packs for qualification.
Selection guide
Choosing between
woven and knitted
There is no universally better mesh. There is only the one that suits your duty. This is the shortlist our engineers work through before recommending either.
- Need a defined, repeatable opening size — choose woven
- Need high porosity and low weight — choose knitted
- Part must hold a flat, stable geometry — choose woven
- Part must conform to an irregular or layered shape — choose knitted
- Filtration with a stated retention rating — choose woven
- Elastic element, demister or compressible layer — choose knitted
Not sure?
Send the duty — we will specify it
Specifications
Catalogued material range
| Material no. | Description | AISI / UNS |
|---|---|---|
| 1.4301 | X5 Cr Ni 18 10 (V2A) | 304 |
| 1.4306 | X5 Cr Ni 18 11 | 304L |
| 1.4401 | X5 Cr Ni Mo 17 12 2 (V4A) | 316 |
| 1.4404 | X5 Cr Ni Mo 17 12 2 | 316L |
| 1.4841 | X10 Cr Ni Si 25 20 | 314 |
| 1.4539 | X1 Cr Ni Mo Cu 25 20 5 | 904L |
| 1.4760 | X1 Cr Ti La 22 (Crofer) | S 44535 |
| 2.4602 | Ni Cr 21 Mo 14 W (Hastelloy C-22) | N 06022 |
| 2.4956 | Ni Cr 22 Mo 9 Nb | N 06625 |
| 2.4060 | Ni 99.6 | N 02200 |
| 2.4066 | Ni 99.2 | N 02200 |
| 2.4068 | LC-Ni 99.2 | N 02201 |
| 2.0060 | Copper | E-Cu 57 |
| 3.3555 | Aluminium | Al Mg 5 |
Sustainability
Powering a cleaner planet
Woven and knitted mesh support electrolysers and fuel cells across the green hydrogen value chain. BVK also powers 50%+ of its energy needs through renewables, with a goal of becoming 100% self-reliant.
50%+
Energy needs powered by renewables
100%
Renewable self-reliance goal
Where it is used
One mesh capability,
many industries
The same weaving and knitting capability serves clean energy and long-established process industries, because the underlying engineering is the same.
Automotive
Drive technology, hydraulic filters, filters and EGR.
Chemical
Filtration, separation and distillation internals.

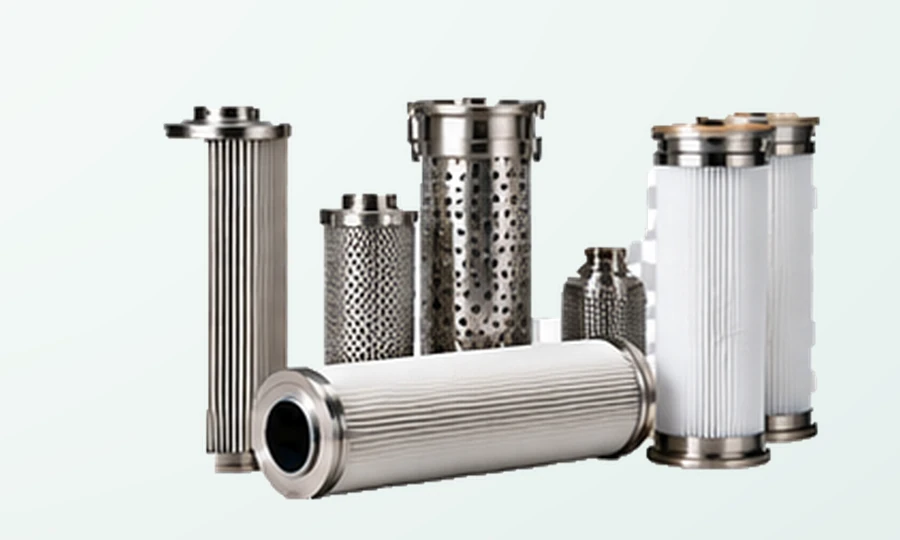

Pulp & Paper
Fibre moulding, paper forming and de-watering.
Why BVK Hydrotech
Six decades of
weaving discipline
BVK Group has worked in precision industrial filtration since 1963. Everything since has been built on that weaving base.
Integrated Plant
German-origin equipment on an integrated weaving platform.
25+ Export Countries
Supplying customers wherever their equipment is built.
DSIR-Recognised R&D
In-house R&D centre recognised by the Government of India.
300+ People
650+ MT of metal converted into mesh each year.
Woven Mesh Solutions
Knitted Mesh Solutions
Process & Treatments
Let's build a cleaner tomorrow
Not sure which mesh your part needs?
That is the normal starting point. Send the duty, the medium and the envelope, and our application team will tell you whether woven or knitted is the right route — and why.
Certifications
Certified quality, safety and compliance
The same management systems and compliance badges audited across every order: quality, environment, safety, energy and material conformity.
AS9100
CE Marking
DSIR Recognized R&D Centre
IATF 16949:2016
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
ISO 50001:2018
REACH Compliant
RoHS Compliant
AS9100
CE Marking
DSIR Recognized R&D Centre
IATF 16949:2016
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
ISO 50001:2018
REACH Compliant
RoHS Compliant
FAQ
Precision Mesh Solutions FAQs
Answers to the questions buyers and engineers ask most often about this part of our range.
