Question 1

What mesh solutions does BVK Hydrotech offer for electrolyser applications?

Accepted Answer

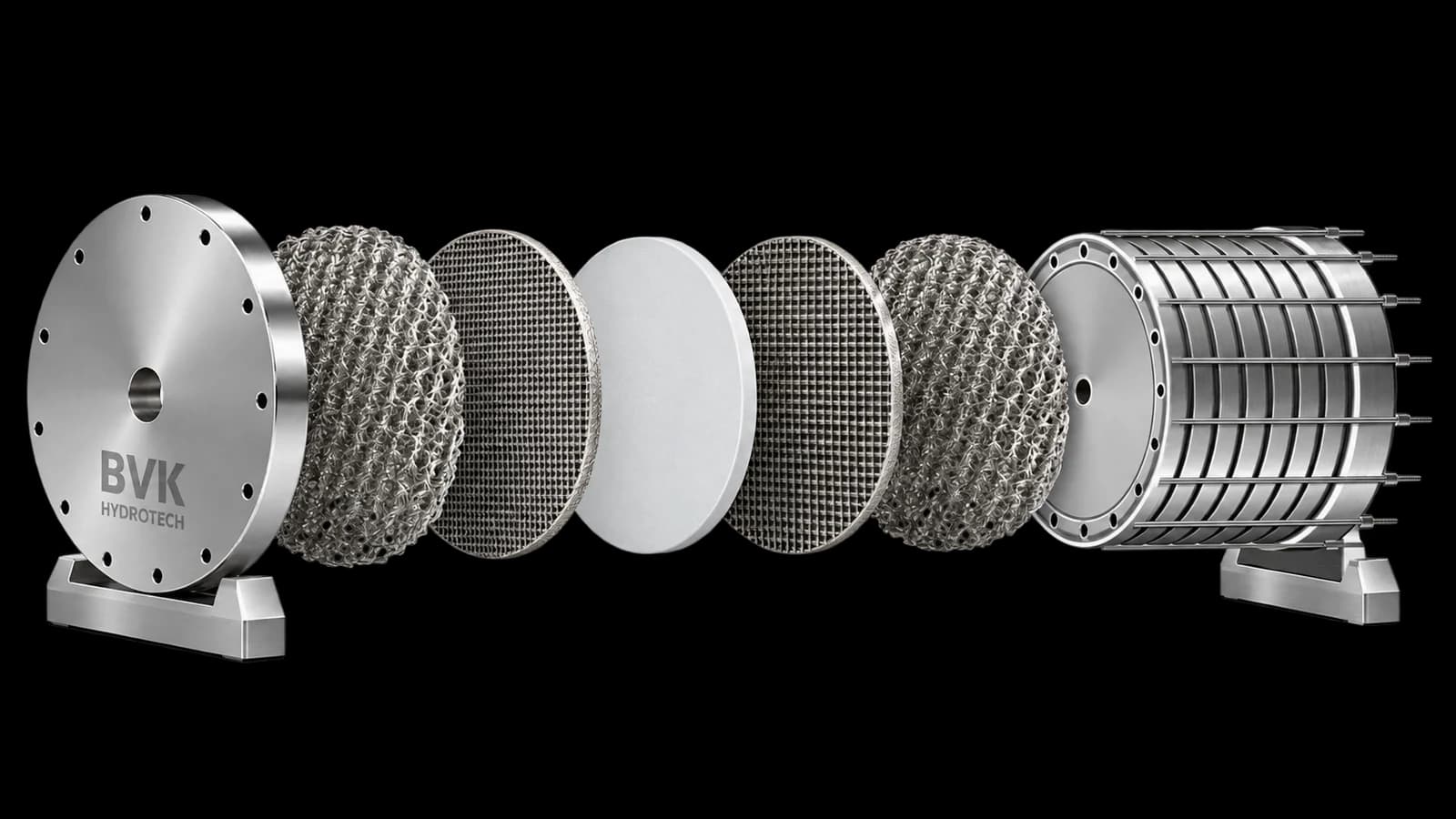

BVK Hydrotech develops woven and knitted metal mesh solutions for electrolyser systems, including applications such as catalyst and electrode support, gas diffusion or dispersion, electrolyte or slurry support, current collection, GDL/PTL-type layers and elastic elements, depending on the stack design.

Question 2

Which materials can be used for electrolyser mesh components?

Accepted Answer

Depending on the application and cell chemistry, supplied BVK literature references materials including Nickel 201/202, titanium, stainless steel and other specialty alloys. Material selection is matched to the required corrosion resistance, conductivity, strength and operating environment.

Question 3

How can mesh porosity be tailored for an electrolyser stack?

Accepted Answer

Porosity can be adjusted through mesh design variables such as weaving or knitting parameters, wire selection, density, needle setup and forming. This allows the mesh structure to be tuned for gas and liquid transport, permeability and stack-fit requirements.

Question 4

How does metal mesh support conductivity and current collection?

Accepted Answer

A woven or knitted wire network creates multiple conductive pathways and increases effective surface area. This can support current collection and distribution while maintaining the open structure required for mass transport.

Question 5

Can BVK Hydrotech supply custom sizes and stack-specific geometries?

Accepted Answer

Yes. BVK materials describe application-specific sizing, continuous rolls, custom die-cut or laser-cut geometries and stack-specific engineered forms. For green-hydrogen knitted mesh, supplied literature also references large single-piece capability, subject to the selected product and application.

Question 6

What surface treatments or finishing options are available?

Accepted Answer

Depending on the requirement, mesh can be degreased, annealed, coated, plated, crimped, corrugated, flattened or otherwise formed to improve cleanliness, conductivity, corrosion resistance, elasticity or integration into the stack.

Question 7

Can BVK support design validation before scale-up?

Accepted Answer

Yes. BVK materials describe an engineering-led approach using R&D, rapid prototyping, CFD modelling, simulation, material recommendations and on-site or technical validation to support design development and performance optimization.

Question 8

What information should be shared for an electrolyser RFQ?

Accepted Answer

Useful inputs include the cell or stack application, operating chemistry, preferred material, dimensions, wire diameter, target porosity or permeability, conductivity needs, required forming or surface treatment, drawings and any available performance specifications.

Parameter	Range	Why it matters
Wire diameter	0.05 mm – 0.30 mm	Sets pore size, surface area and stiffness of the layer
Knit type	Single, double and multi-end	Controls GDL density and conductive path count
Single-piece diameter	Large single-piece sizes	Sized per product and application; avoids seams in large circular stack components
Materials	Nickel 201 / 202, titanium, stainless steel, Hastelloy, specialty alloys	Selected per alkaline or PEM cell chemistry
Corrugation	4 – 10 mm	Tunes elasticity and contact pressure in the stack
Needle gauge	1 / 2 / 3+	With stitch length, sets pore size and cell fit
Surface treatment	Degreased, annealed, coated or plated	Cleanliness, conductivity and corrosion resistance
Forming	Crimped, corrugated (herringbone, W, V), flattened, laser-cut	Matches the component envelope without secondary work
Standards referenced	ASTM B164, ISO 9044, DSIR-RDI, ISO 22734-ready QMS	Supports stack qualification and audit packs

ElectrolyserSolutions

Engineered for a
Hydrogen-Powered Future

Material & Component Solutions
for Electrolysers

GDL / PTL Mesh

Catalyst Support

Flow Control

Nickel Elastic Elements

Current Collection

Custom Components

From water to
clean hydrogen

1. Water Feed

2. Electrolysis

3. Hydrogen Output

4. Oxygen By-product

5. Clean Energy

Engineered for
Performance

Electrolyser mesh specification range

Powering a cleaner planet

Powering Multiple
Industries

Green Hydrogen Production

BoP Filter Elements

Hydrogen Storage & BoP

Purification & Drying

Trusted Partner for
Electrolyser Components

R&D Led

Certified Systems

Integrated Production

Sustainability Focus

Advanced Mesh Materials

Precision Component Manufacturing

Quality & Performance Assurance

Ready to Accelerate Your Hydrogen Journey?

Certified quality, safety and compliance
